Universal D28 3D Welding Table Compatible All Standard Welding Clamps

Supply Ability : 500 units/month

Hole Standard : D28 (φ28mm, 100×100mm Grid)

Model Number : D28

Heat Resistance : Up to 300℃

MOQ : 1 PCS

Delivery Time : 15-25 work days

Hole Tolerance : ±0.03mm

Payment Terms : D/A,L/C,D/P,T/T

Working Surface : 5-sided 3D Table

Compatibility : Fits All Standard D28 Welding Clamps

Price : 500-1500 USD

Main Material : Q355 Steel Plate / HT300 Cast Iron

Surface Treatment : Nitriding

Precision Grade : Grade 1 Standard / Grade 0 Ultra Precision

Certification : CE

Place of Origin : WUXI , CHINA

Packaging Details : 4000*2000*200mm

Brand Name : WUXI LEMAR

Verticality of Side Panels : ≤0.1mm per 200mm

Contact Now

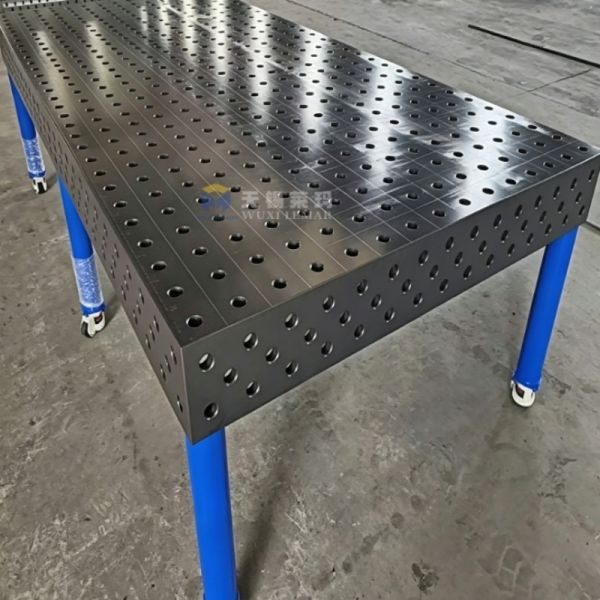

Universal D28 3D Welding Table Compatible All Standard Welding Clamps
Universal D28 3D Welding Table Compatible All Standard Welding Clamps

Our Universal D28 3D Welding Table is a modular flexible fixturing platform specially designed for industrial welding, frame assembly, metal fabrication and inspection work. Adopting global universal φ28mm hole system with 100×100mm grid spacing, this 3D welding bench perfectly matches all standard D28 welding clamps, positioning blocks, quick locking pins and auxiliary fixtures from mainstream manufacturers worldwide.


Universal D28 3D Welding Table Compatible All Standard Welding Clamps Universal D28 3D Welding Table Compatible All Standard Welding Clamps

Core Technical Specifications
Item Standard Parameter Optional Upgrade
Hole Spec D28, hole center distance 100×100mm Custom coordinate marking
Working Sides 5 sides (top + 4 vertical sides) Add side baffle guard
Table Material Q355 thick steel plate 25mm HT300 high-grade cast iron
Surface Treatment Ion nitriding HV650-850 High-hardness thick nitriding layer
Flatness Accuracy Grade 1: ≤0.1mm/1000mm Grade 0 Precision: ≤0.05mm/1000mm
Static Uniform Load 2 tons per square meter Reinforced rib for 5-ton concentrated load
Standard Table Height 630mm 750-950mm adjustable height legs
Edge Process Full R5 arc chamfer, no sharp edges Laser engraved customer logo
Certification CE, ISO9001 Full English inspection report
Core Advantages
Universal D28 3D Welding Table Compatible All Standard Welding Clamps
  • Flexible and modular design eliminates the need for custom-made tooling: A welding table combined with standard fixtures allows for quick reconfiguration to accommodate different workpieces, whereas traditional welding methods require expensive, dedicated jigs for each product.
  • 3D multi-angle positioning: A five-sided hole grid enables spatial clamping, allowing chassis, frames, and complex tubular parts to be positioned and welded in a single setup, thereby minimizing errors caused by repeated repositioning.
  • High precision and consistent welding dimensions: Ideal for mass production while ensuring workpiece interchangeability; the robotic automated welding workstation comes standard with a precision base table.
  • Exceptional versatility: Compatible with all standard D28 fixtures and interchangeable with existing tooling, making it suitable for workshops handling diverse product lines.
Support Leg Systems
  • Standard Fixed Leveling Legs (Included as Standard): Thick square tube with rubber leveling feet, ±30mm fine adjustment for uneven ground.
  • Height Adjustable Telescopic Legs: 750-950mm working height for ergonomic operation.
  • Mobile Caster Legs with Brake: Easy workshop transfer without forklift, lock firmly during welding.
  • Heavy Fixed Base Legs: Pre-drilled expansion bolt holes for robot workstation permanent fixing.
Why Choose Our D28 3D Welding Table?
VS Import German Brand D28 Tables
100% same D28 standard hole system, fully interchangeable clamps; same nitriding hardness, only 40% of import price, shorter lead time and accessible spare parts supply.
VS Low-Cost Domestic Welding Tables
Our table: Double stress relief, thickened reinforcement ribs, complete ion nitriding, ±0.03mm hole precision, service life 8-12 years
Cheap competitors: No aging treatment, thin ribs, simple paint only, large hole tolerance, deformed within 1-2 years, frequent pin jamming and scrapped workpieces
Daily Maintenance Guide
  • Daily: Clear welding slag with shovel, wipe hole debris
  • Weekly: Apply anti-rust oil on lock pins to prevent sticking
  • Semi-annually: Recheck flatness and re-level support legs
  • Forbidden: Plasma cutting directly on table, heavy workpiece single-point long-term extrusion
Interested in our Universal D28 3D Welding Table Compatible All Standard Welding Clamps?
Send us your workpiece size and production demand, we will provide customized layout drawing & full fixture quotation within 24 hours.
