Professional D16 3D Nitriding Welding Table with Modular Fixturing System

Surface Hardness : HRC 45 (after nitriding)

Price : 500-1000 USD

Delivery Time : 15-20 work days

Surface Roughness : Ra 3.2 μm

Surface Treatment : Gas nitriding

Certification : CE

Loading Capacity : 2–5 tons

Material : High-strength steel (Q355/S355J2N)/HT300

Model Number : D16

Packaging Details : 3000*2000*200mm

Perpendicularity : 0.05 mm/200 mm

Brand Name : WUXI LEMAR

Positioning Accuracy : ±0.05 mm

Payment Terms : D/A,L/C,D/P,T/T

Table Flatness : ≤0.1 mm/m

Place of Origin : WUXI

MOQ : 1 PCS

Supply Ability : 500 units/month

Hole Diameter : 50 mm × 50 mm (±0.05 mm)

Contact Now

Professional D16 3D Nitriding Welding Table with Modular Fixturing System
Product Overview

The Professional D16 3D Nitriding Welding Table with Modular Fixturing System is an industrial welding platform featuring high precision, three-dimensional positioning, surface hardening, and freely combinable fixtures. Designed for precision welding, assembly, and inspection of small and medium-sized parts.

  • 3D Positioning: 5-face system with D16 precision mesh enables accurate workpiece positioning at any spatial position/angle, with repeat positioning accuracy of ±0.03mm
  • Quick Clamping: Modular fixtures lock quickly with D16 positioning pins/bolts, eliminating need for welding/drilling - complex workpiece clamping completed within 10 minutes
  • Rigid Support: Thick tabletop with reinforced ribs and adjustable support feet prevents deformation and shaking during welding, ensuring weld seam consistency
  • Nitriding Protection: Hard surface resists welding slag adhesion and splash corrosion, maintaining stable accuracy for long-term use with minimal daily maintenance

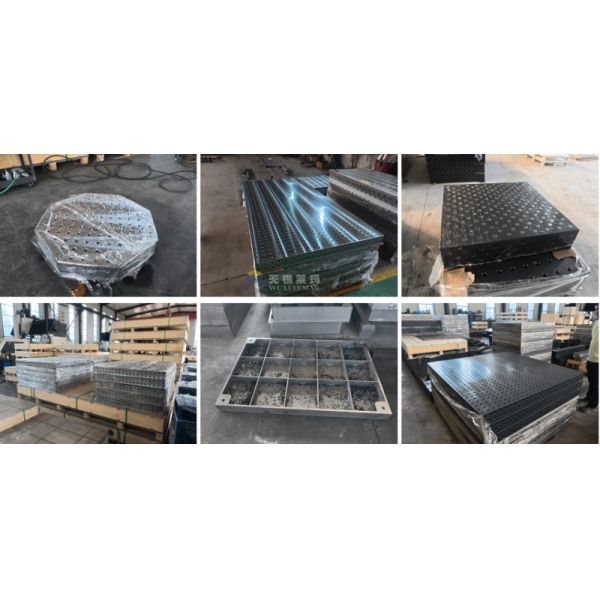

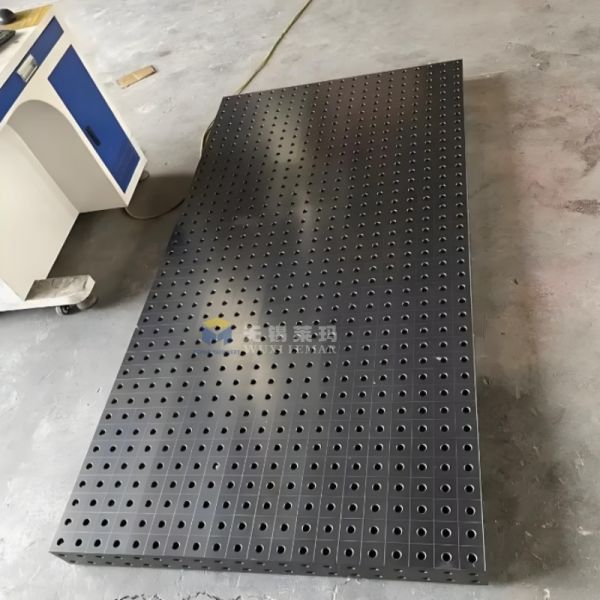

Professional D16 3D Nitriding Welding Table with Modular Fixturing System Professional D16 3D Nitriding Welding Table with Modular Fixturing System
Technical Specifications

Custom configurations available upon request.

NO Welding Table Specification Hole Diameter Flatness Material
1 3000mm × 1500mm D16 welding table 0.1/1000mm Cast iron/steel
2 2400mm × 1200mm 0.1/1000mm Cast iron/steel
3 2000mm × 1500mm 0.1/1000mm Cast iron/steel
4 2000mm × 1000mm 0.1/1000mm Cast iron/steel
5 1500mm × 1000mm 0.1/1000mm Cast iron/steel
6 1200mm × 1000mm 0.1/1000mm Cast iron/steel
7 1000mm × 1000mm 0.1/1000mm Cast iron/steel
Professional D16 3D Nitriding Welding Table with Modular Fixturing System
Typical Application Scenarios
  • Automotive Industry: Welding and testing of frames, chassis components, seat frames, and new energy battery frames
  • Construction Machinery: Welding of small structural components, boxes, brackets, and pipelines
  • Sheet Metal/Precision Manufacturing: Splicing of thin plates, complex cavities, welding of aluminum/stainless steel parts
  • Robot Welding: High-precision positioning, suitable for robot automated welding lines
Recommended Accessories
  • Supporting Feet: Adjustable horizontal feet (±50mm) with locking casters for easy movement and fixation
  • Expansion Parts: U-shaped/L-shaped square box, extension table top for oversized D16 welding tables
  • Auxiliary Tools: Positioning pins, M16 bolts, anti-welding slag cover plates, precision testing rulers
Frequently Asked Questions
Can we visit your factory?
Of course, you are welcome to visit us anytime!
How can we get a quotation?
Please provide specifications including material, size, aperture, and other requirements.
How long is the delivery time?
Typically 15-20 days after we receive your payment.
What is the packaging?
Inner packing - plastic bag. Outer packing - export wooden box.
Can I get the products with our logo and design?
Yes, most of our products can be customized according to your requirements.
Interested in our Professional D16 3D Nitriding Welding Table with Modular Fixturing System? Contact us for more details today.
